Technical Description

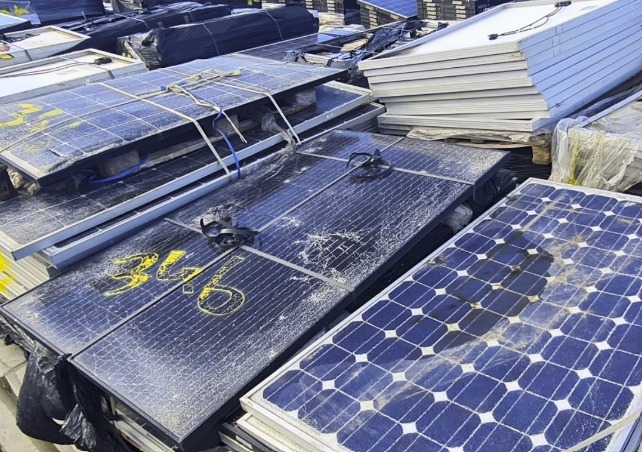

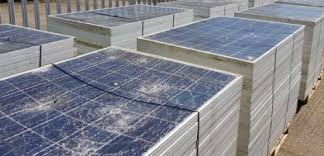

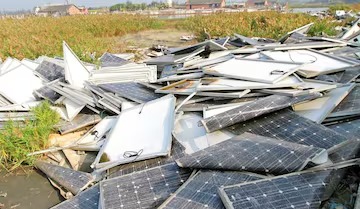

Waste –Rejected- Broken Solar Panels Reusable Money From Waste

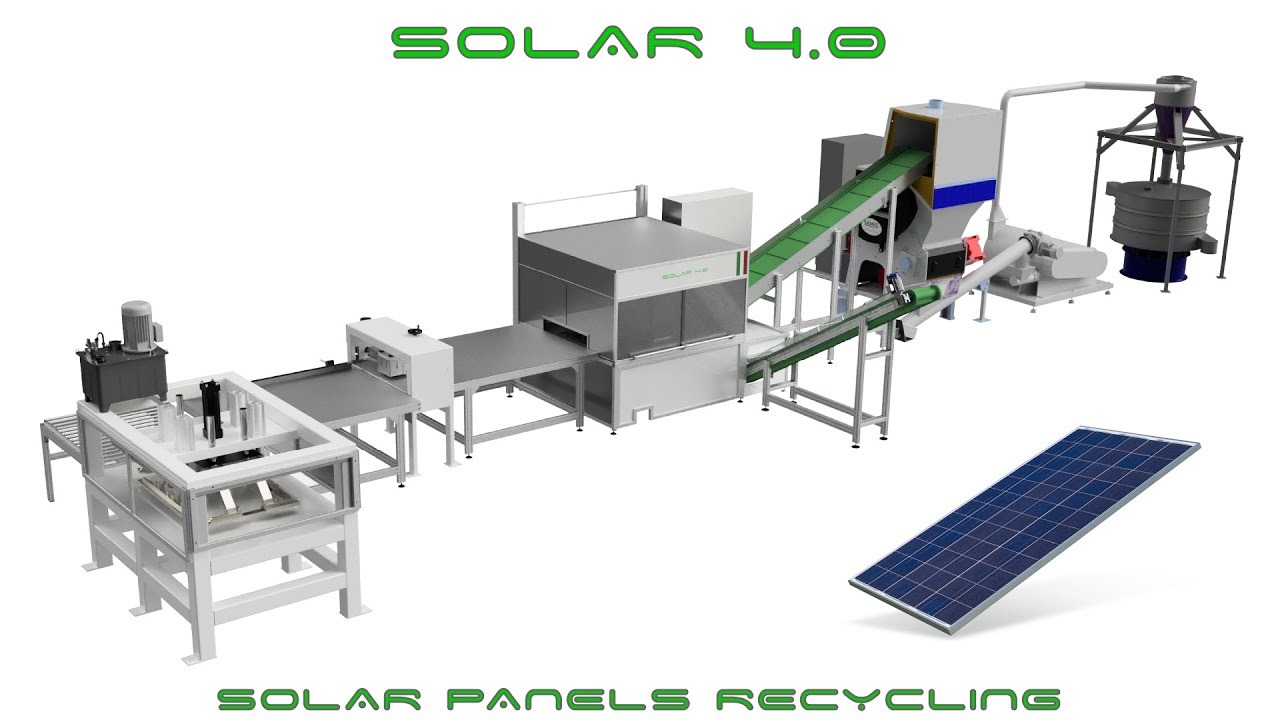

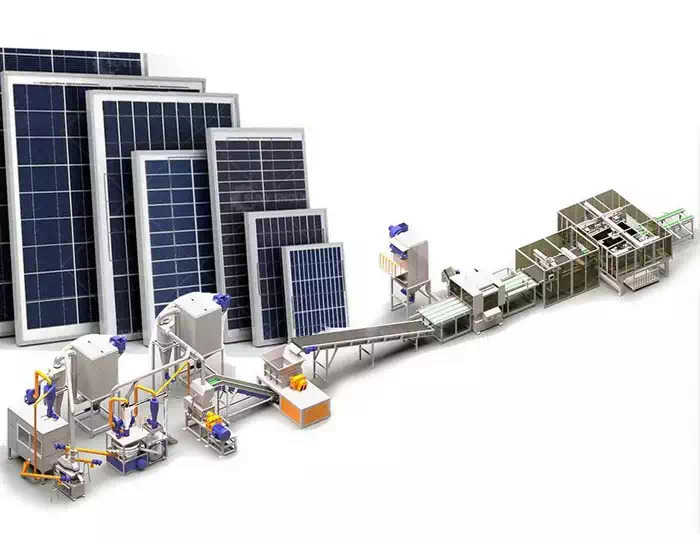

Solar Panel Recycling Plant Tp Produce Reusbale Glass-Copper-Aluinium-Plastics-Silica In Powder Form:

@ 50-60 Panels / Hour

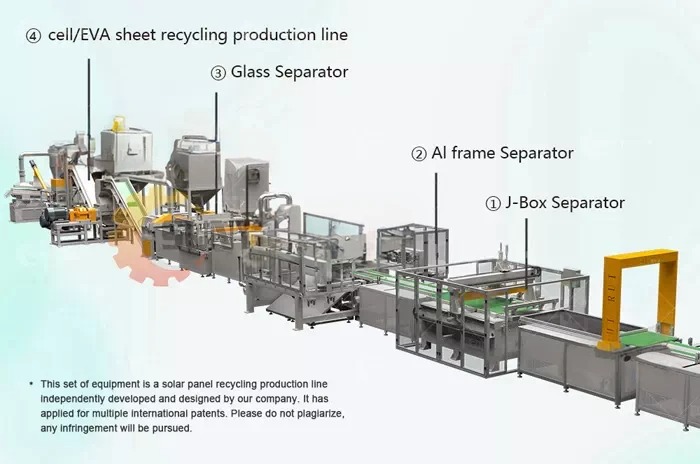

Robot Feeding System

3d Scan System

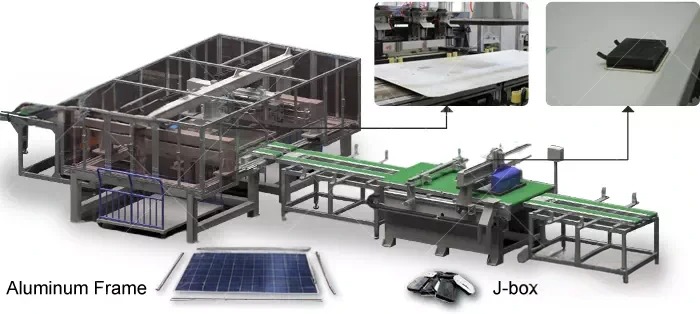

J-Box Removing Machine

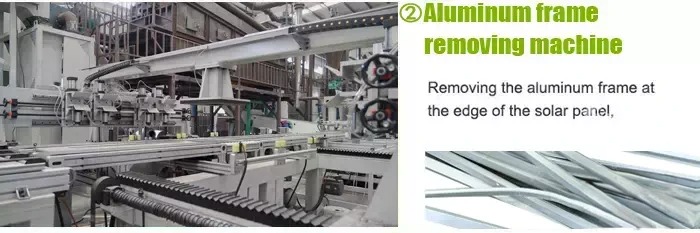

Aluminum Frame Removing Machine

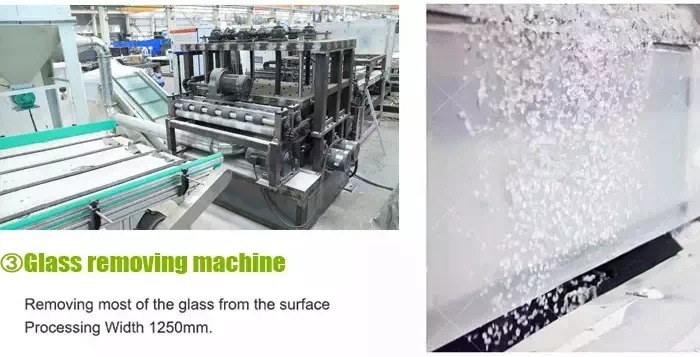

Glass Removing Machine

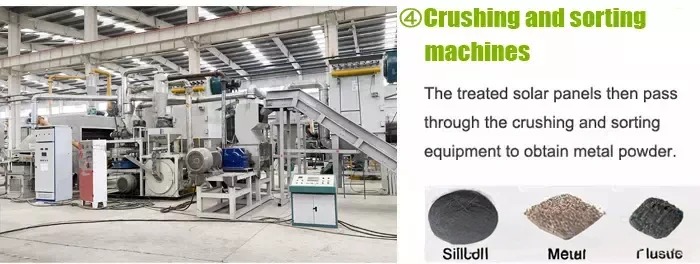

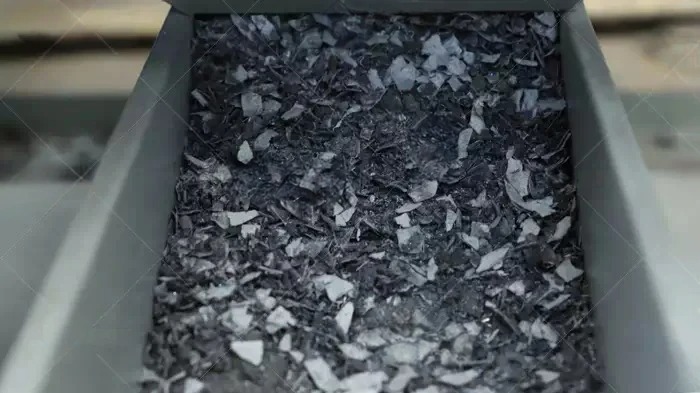

Solar Panel Shredding Crushing

Separating Recycling Equipment

Total Power 257 Kw

Total Weight About 30 Tons,Weight

About Each Machine

Capacity The Processing Capacity Of

The Entire Line Of Photovoltaic Panels Is 50-60 Pieces/Hour (About 0.5~2.1

Tons/Hour According To The Different

Specifications Of The Board, Which May Fluctuate Due To The Operation

Proficiency), And The Smooth Operation Of The Equipment Is 96%.

Layout / Dimension

45*8.5*5.2 M(With Robot Feeding System)

39*8.5*5.2 M(Without Robot Feeding System)

Operation Workers Need 4-6

Applicable Materials

Application Range For Solar Panel: Mono-Ficial Glass Panel With Length 1000-2400 Mm; Width 800-1300 Mm

The Panel Deformation Of The Photovoltaic

Panel Should Not Exceed 30 Mm, The Height

Of The Rubber Strip Is Not Higher Than 2.5

Mm, And The Backplane Of The Photovoltaic

Panel Should Have A Certain Toughness.

Plc, Servo Motor, Low Voltage Electrics

Siemens

Three Phase Motors Siemens Beide

Pneumatic Parts Airtac.................
