Technical Description

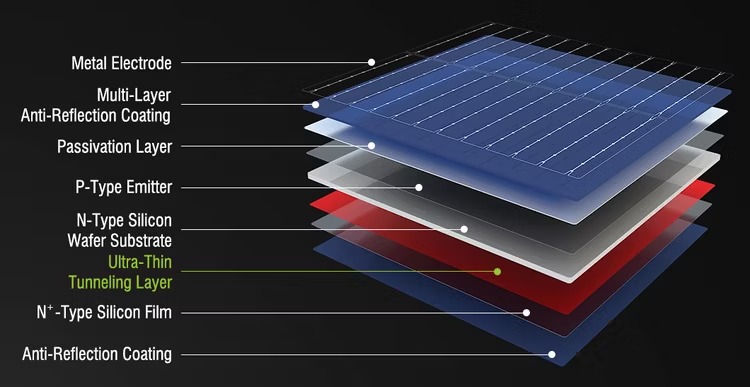

250 Mw  To 1000 Mw, One Giga Watt Solar Panel Photovoltaic Solar Panel Module Type  Topcon N Hjt M10  182 X182 ) 16bb Top Con And G12r   182 X 210 16bb Topcon
210 By 210 High Speed Integrated Stabber Stringer, Auto Rectifier Production  Up To 9000 Cells Per Hour

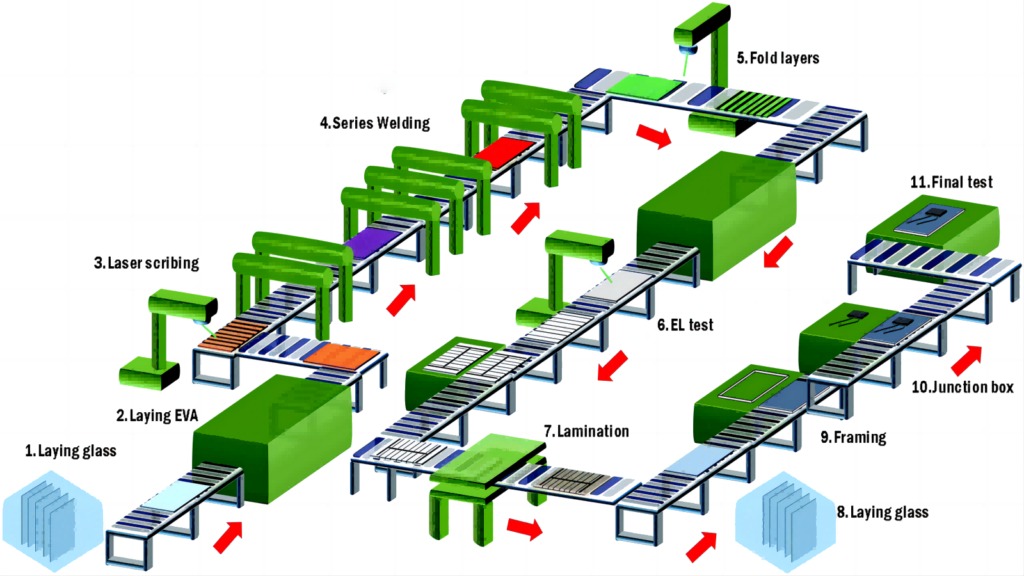

Intelligent & Economical  & Affordable Automation & High Performance Production Lines
Solar Panel Manufacturing, Production , Equipment, Machinerys, Techncologies

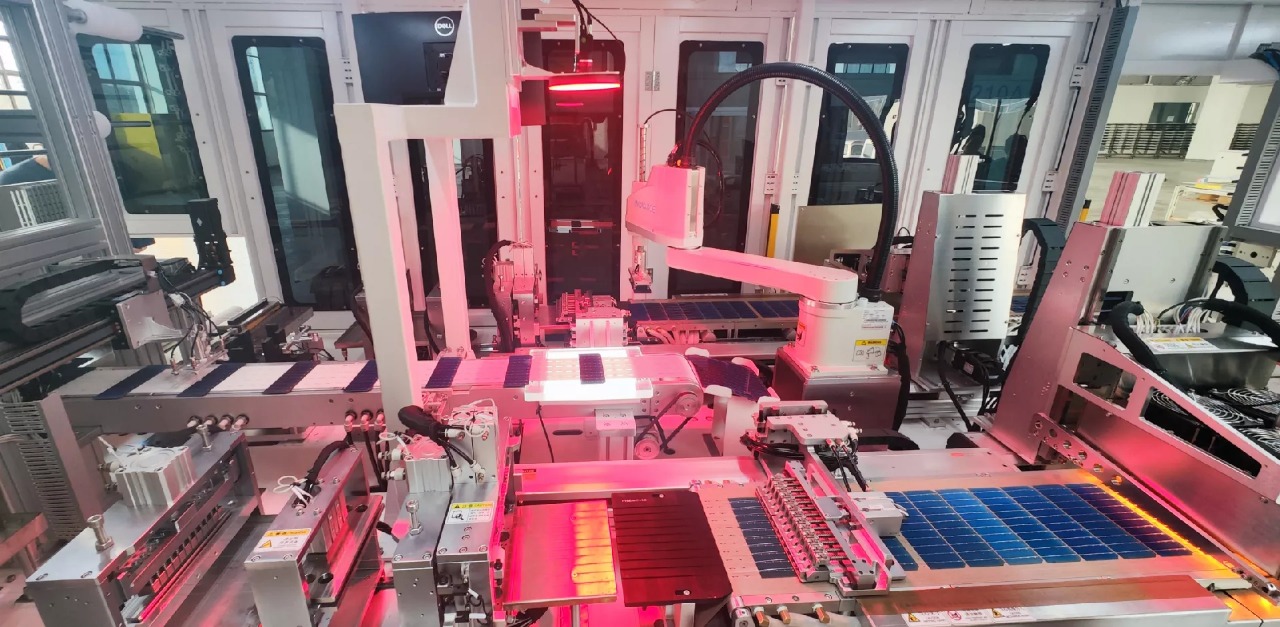

Auto Stringer, Am050k, With Builtin Layup & Bussing Auto Inline
Glass Loader, Two Side Glass Pallet Auto Inline
Inline Eva Cutting And Laying  Two Roller  With Point Melting Auto Inline
Aoi Soldering Inspection After Auto Bussing Auto Inline
Eva Slot Placement With Barcode Printing  Stiking On Top Busbar Auto Inline
Auto Tape Sticker Four Heads Auto Inline
Inline Eva And B/S Cutting Laying Two Roller With 3 Hole Punching Joint Melting Auto Inline
Second Glass Loader 2 Glass Pallet Two Paper Pallet Auto Inline
2nd Glass Mixer Auto Inline
Ribbon Bending And Teflon Placement Auto Inline
Inline El Tester  With Visual Both Sides Three Screen Auto Inline
With Ai -Asic-Py -Auto -Inline -6 -2000 -12000
Auto Tape Sealing Auto Inline
Glass Loader Repair Auto Inline
Glass Loader Repair Vertical Auto Inline
Auto Laminator 3 Stage And 2 Stack 8700 Mm  By 2700 Mm  Oil Heating Loading Lifting Belt And Unloading 2 Layers Buffer With Chinese Vacuum Pump Auto Inline
First Chamber Top Heating Autoinline
Sealing Tape Remover Auto Inline
Auto Trimming Auto Inline
Corner Trimming Auto Inline
Inline El Tester With Out Visual One Screen Auto Inline
With Auto Inline
Inspection Auto Optical Inspection Sunny Side Auto Inline
Auto Framing Machine 4 In 1 With Buffer Loader Double Head Double Pcf System Glue Pump_Aro Make 3 Pump  Framing Machine Auto Inline
Icb Lifting Teflon Remover Auto Inline
Glue Dispenser On Module Backside For Jb Placement Area With One Pump Auto Inline
Jb Placement Auto Inline
Auto Jb Soldering Without Tin Adding Auto Inline
Auto Jb Potting 3 Nozzle Auto Inline
Potting Pump Auto Inline
Potting Inspection Mounting Hole  Potting Inspection Auto Inline
Auto Corner Filling Auto Inline
Testing Kit Auto Loading Auto Inline
Sun Simulator A A A With Top Lighting Max Testing Area : 2600 Mm In To 1500 Mm Auto Inline
Inline Hi Pot Tester 3 Layer Auto Inline
Testing Kit Auto Removing Auto Inline
Aoi Auto Optical Inspection Two Sides Auto Inline
Auto Label Sticker One Back Label One Frame Barcode Auto Inline
Belt Cv With Alignment Auto Inline
Belt Cv Auto Inline
Buffer Before Framing 20layers After Framing 13 Layers Auto Inline
2 Axis Cv Auto Inline
Belt Cv With Alignment Auto Inline
Belt Cv Auto Inline
Belt Gate
Lifter
Buffer Before Framing 20 Layers  After Framing 13 Layers
Axis Cv
Belt Cv
Belt Gate
Belt Gate
Free Rotation And 90 Rotation
Belt Cv -Sc Solar -Auto -Inline -7 -1700 -11900
90d Flipping Inspection
Module Loader  Unloaded
Curing Line Without Cabin Humidifier Ac
180d Turning
Standard Module Storage 3layers
Conveyor For Sun Simulator With Auto Testing Connection
Final Inspection With Auto Flipping
Auto Sorting 6bin Flat  Long Edge On Ground Vertical Type With Trolley   Pallet
Belt Cv With Align
Test Jig Return Line
Manual Gate
Final Testing Extension Jig Bar Type
180d Turning
Conveyor For Sun Simulator With Auto Testing Connection
Sun Simulator Aaawith Top Lighting Max Testing Area 2600 Mm In To 1500 Mm
Inline Hipot Tester Single Layer
Final Testing Extension Jig Bar Type
Jb Dispenser With Comm Pump From Frame Dispenser
String Repair El Station Semiauto Offline
Eva Slot Cutting Machine Semiauto Offline
