Technical Description

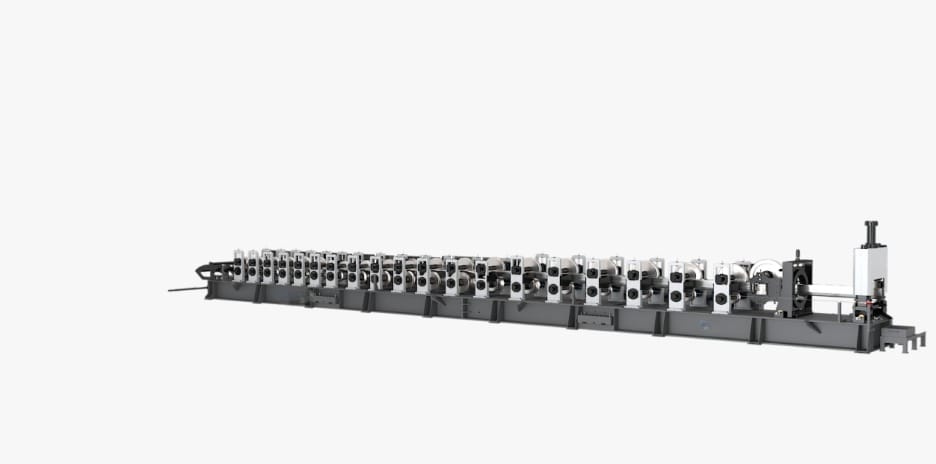

Solar Panel Structure Mounting Bracket Roll Forming Machine Production Line

Roll Forming Machine For Production Solar Bracket Named As Solar Pv Bracket, Solar Photovoltaic Bracket.

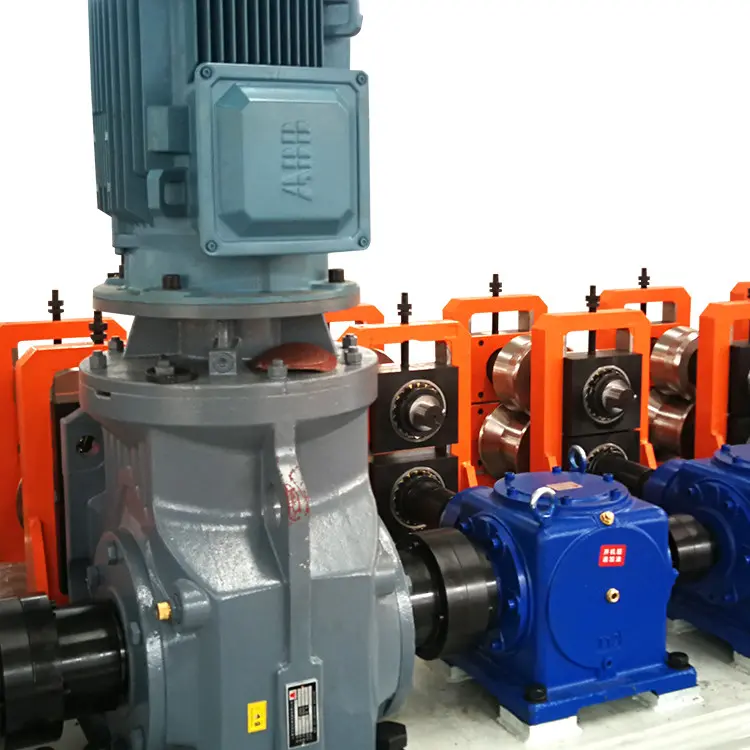

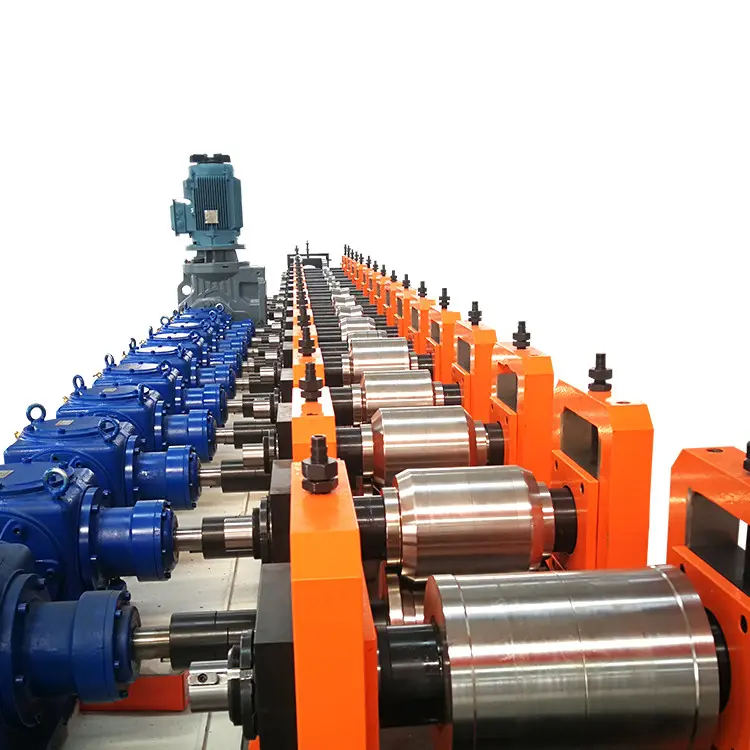

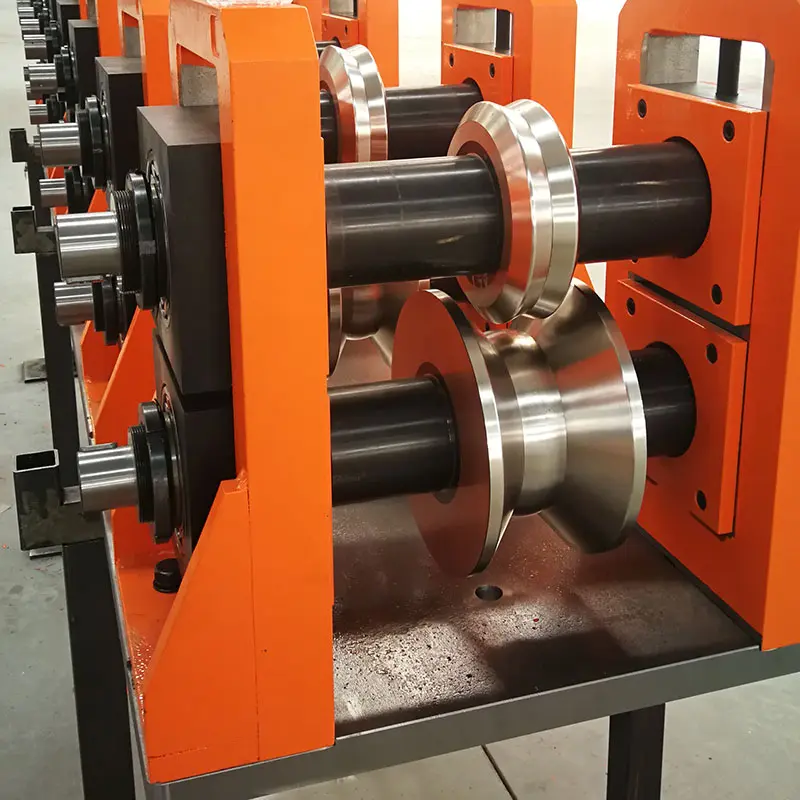

Roll Forming Machine For Solar Mounting Bracket

Technical Parameters

Item-Parameter-Remark

1-Material-Type-Cold-Rolled Strip Steel, Galvanized Sheet-

--T.(Mm)-2.0mm-

--Yield Strength (Mpa)-Q235-300-

2-Forming Product   Width-50mm-

3-Forming Speed   (M/Min)-10-18m-

4-Forming Main Power   (Kw)-18.5 Kw-Fyr

5-Hydraulic Power   (Kw)-18.5 Kw-Fyr

6-Voltage- Ac380v，50hz，3p-

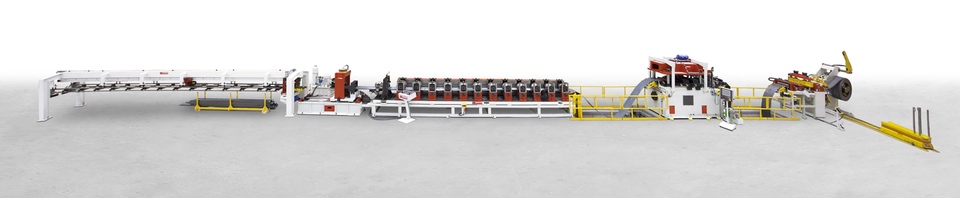

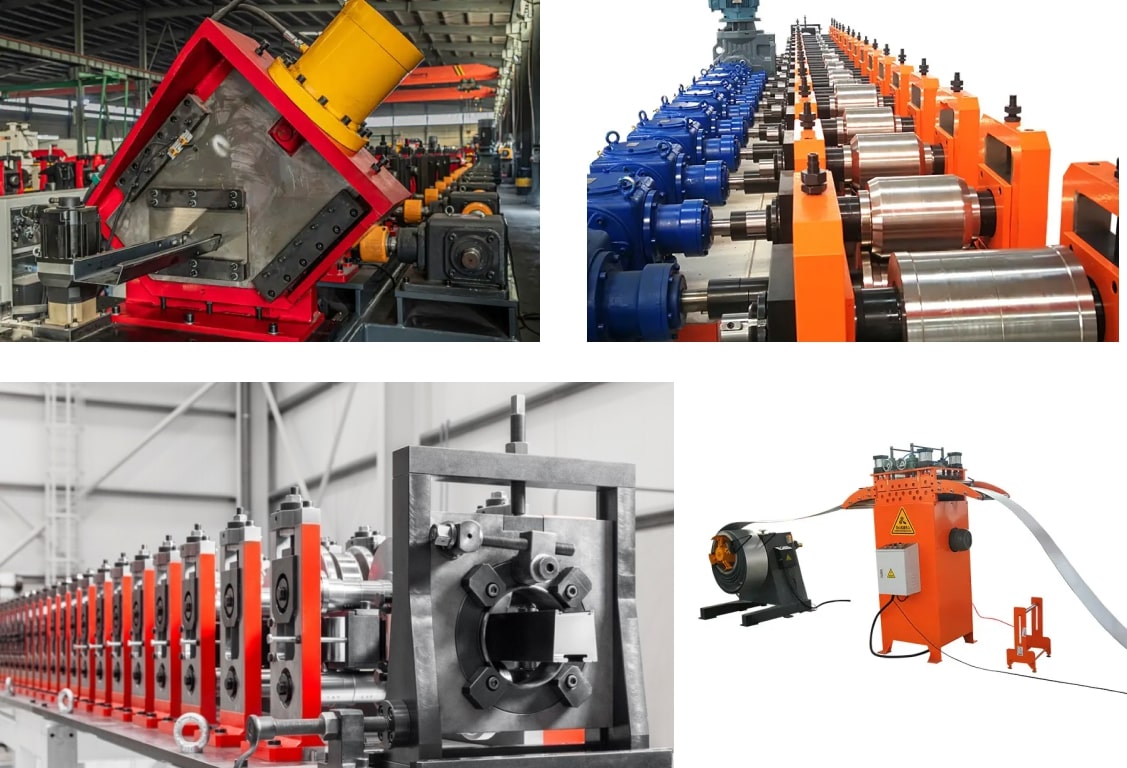

Solar Bracket Production Line Process

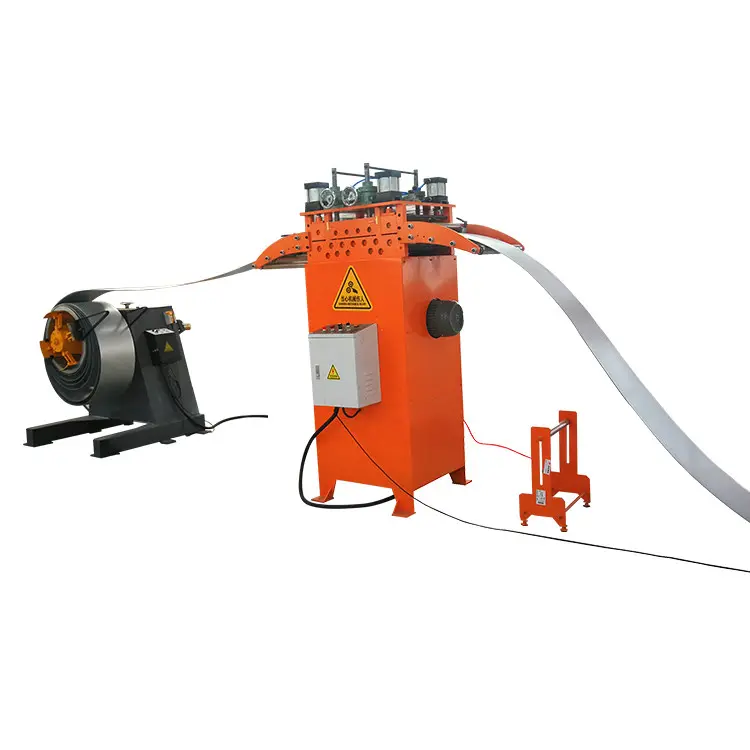

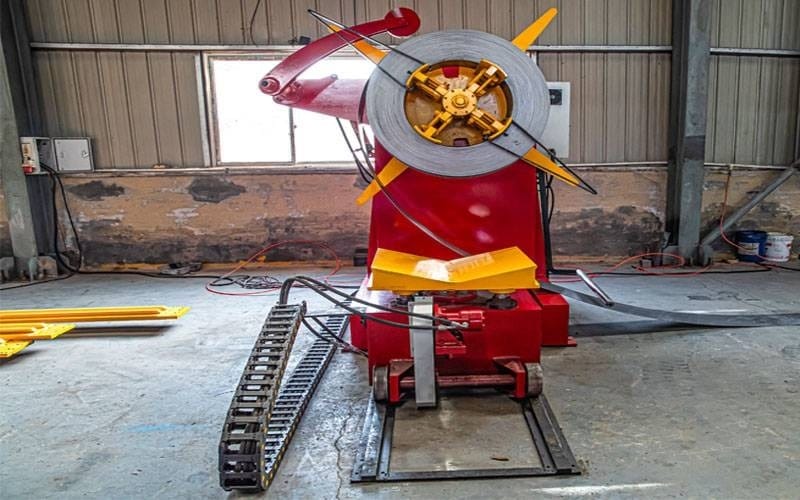

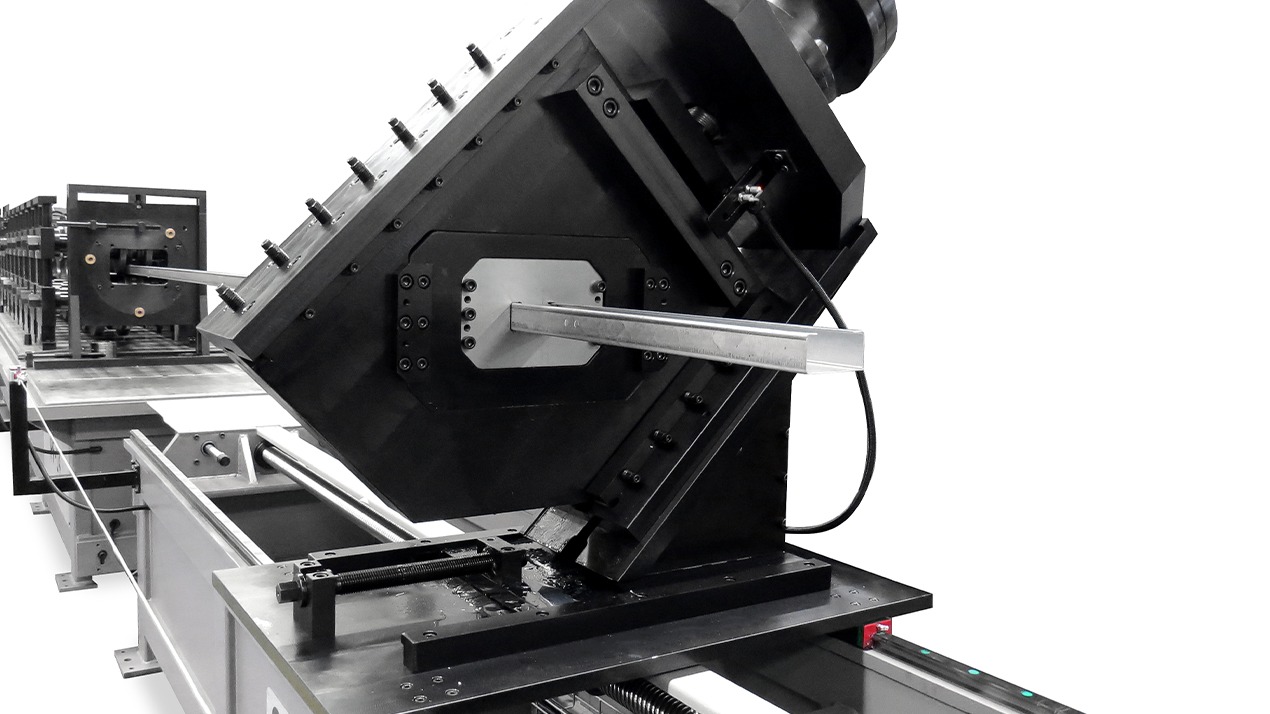

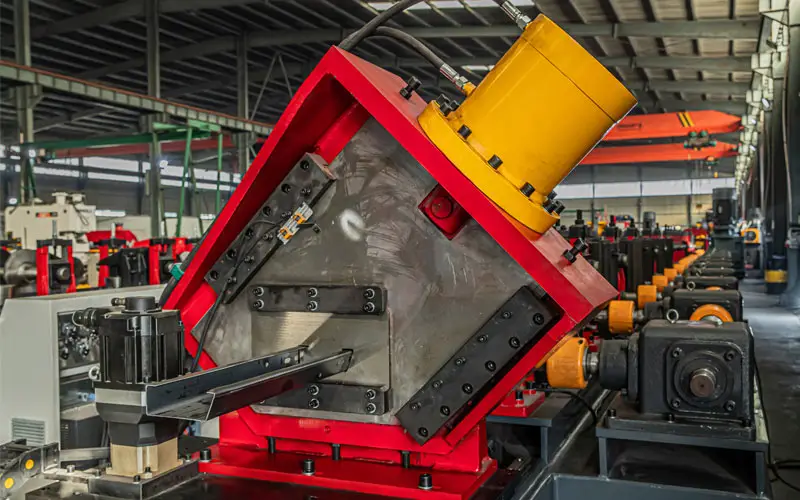

(A)                   2 In 1 Uncoiler Straightening→Servo Feeder→Hydraulic Press Breach Device  → Guide Device → Roll Forming Machine →  Hydraulic Punch  →Shear Device (Including Knife)→ Finished Product Rack.
