Technical Description

High Speed Interconnect Pv Ribbon Machine Is A Device Commonly Used To Produce Vital Components For Solar Panel Wires, Known As Solar Panel Ribbon Wire Machine. This Production Line Is A Turnkey Production Line,These Pv Ribbon Making Machines Can Be Plated With Various Lead-Containing Or Lead-Free, Tin, Tin-Lead, Tin-Lead-Silver And Other Solders, They Are Used To Link Solar Cells In A Module With A Speed 400m/Min, The Annual Output Of The Double-Line Production Line Can Reach 1000 Tons ;Servo Winding And Cooling Systems Provide Precision Control Which Maintains The Quality Of Production As Set By You. In Fact, The Advanced Standard Interconnect Pv Ribbon Rolling Machine Ensures High-Quality Pv Ribbons Improved Materials That Increase The Durability, Efficiency And Output Of Solar Panels.Technology Co.; Ltd Used Induction Heat To Replace The Traditional Short-Circuit Power Supply For Pv Ribbon Rolling Machine;

Pv Ribbon Products

Parameter

Industry Standard

Other Company

Crm

1

Conventional Interconnect Pv Ribbon

Coating Thickness

±5μm

25±5μm

25±3μm

Finished Product Thickness

≥0.01mm

≥0.015mm

≥0.01mm

Finished Product Width

±0.05mm

±0.05mm

±0.05mm

Tensile Strength

≥110mpa

≥150mpa

≥170mpa

Elongation

≥15%

≥25%

≥25%

Yield Strength

≤70mpa

≤70mpa

62.68mpa

Sickle Bend

≤5mm/M

≤4mm/M

≤4mm/M

Resistivity

0.30ω* Mm²/M

0.02-0.023ω* Mm²/M

0.0230 Ω* Mm²/M

Aging Resistance

Dh2000

Corrosion Resistance

Salt Spray Test

Salt Spray Test 48h

Salt Spray Test 48h

2

Conventional Interconnect Pv Busbar

Coating Thickness

±5μm

25±5μm

25±3μm

Finished Product Thickness

≥0.01mm

±0.015mm

±0.015mm

Finished Product Width

±0.05mm

±0.05mm

±0.05mm

Tensile Strength

≥120mpa

≥150mpa

≥170mpa

Elongation

≥18%

≥25%

≥25%

Sickle Bend

≤5mm/M

≤3mm/M

≤3mm/M

Resistivity

0.30ω* Mm²/M

0.02-0.023ω* Mm²/M

0.0230 Ω* Mm²/M

Aging Resistance

-

-

Dh2000

Corrosion Resistance

Salt Spray Test

-

Salt Spray Test 48h

3

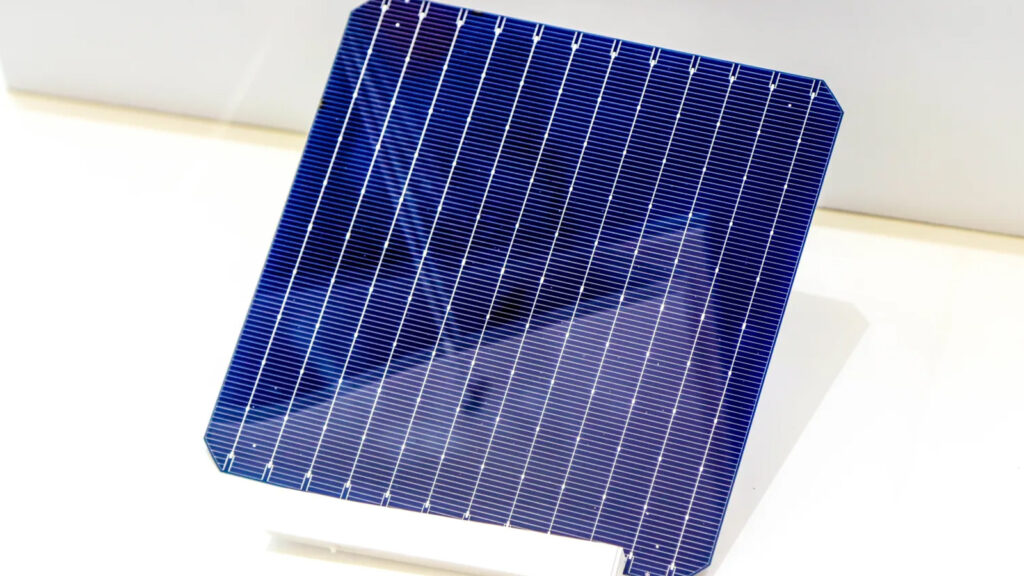

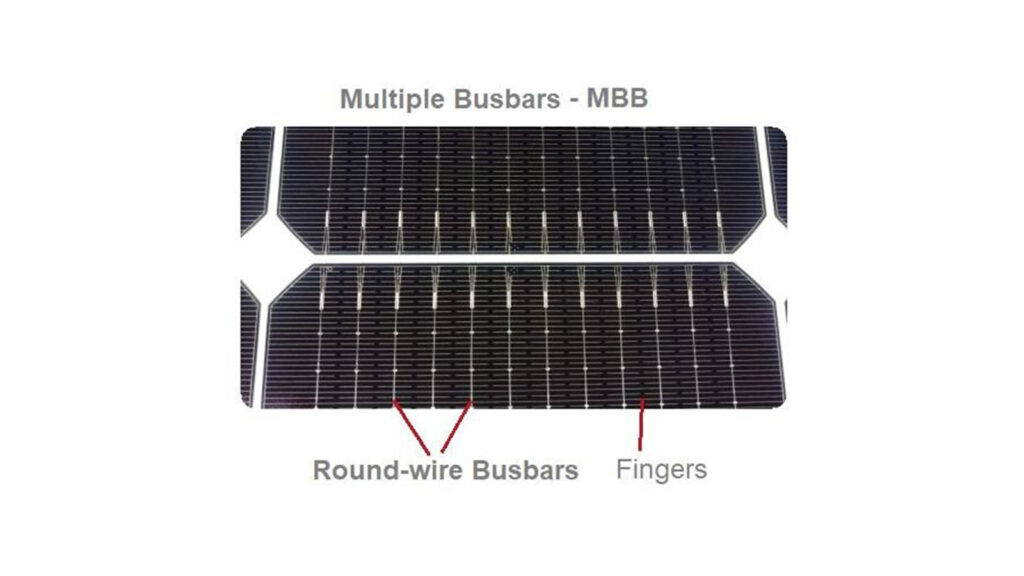

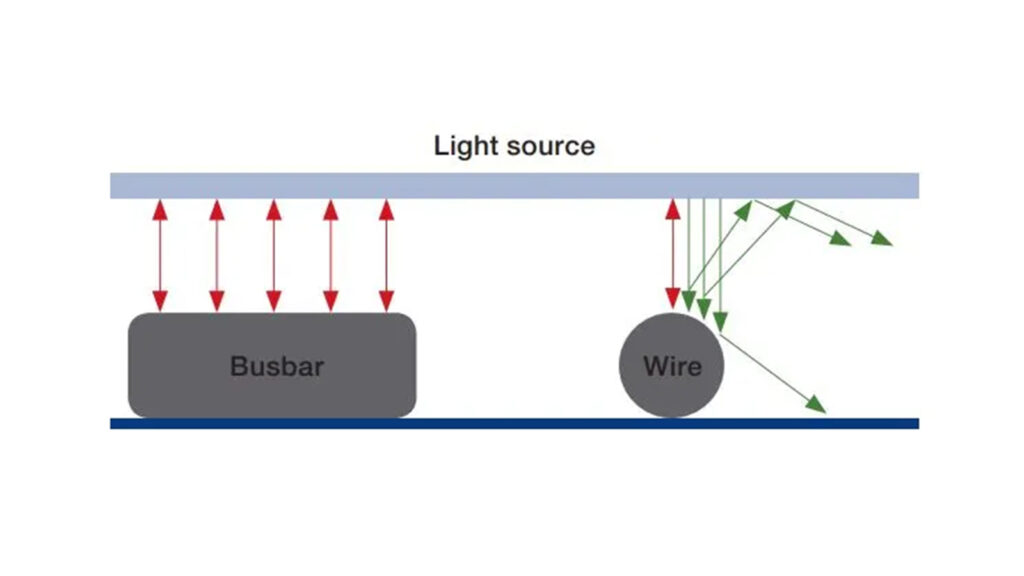

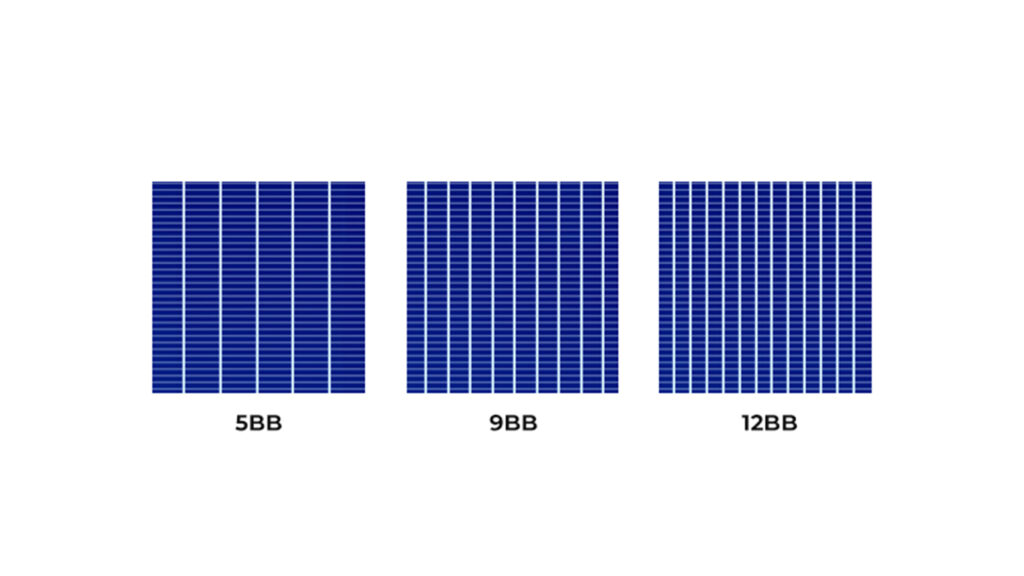

Multi-Busbar (Mbb) Pv Ribbon

Diameter

-0.003+0.012mm

-0.005，+0.015mm

Average Coating Thickness

±5μm

17±4μm

17±3μm

Yield Strength

≤70mpa

≤70mpa

≤62.68mpa

Elongation

≥15%

≥25%

≥25%

Resistivity

0.30ω* Mm²/M

≤0.025ω* Mm²/M

≤0.021ω* Mm²/M

High Speed Interconnect Pv Ribbon Machine Characteristics

1. Servo Driven Pay-Off And Take-Up With Adjustable Tension For Very High Accuracy. Wire Drawing Machine, The Most Extensive Through Your Various Wire Size-Optional.

2. The Spacing Is Entirely Controlled By The Computer And Can Be Changed Over Wifi. It Is A Precision Adjustable Constant Tension Model. Automatic Roll Change (Not Available For All Rollers)

3. Volatge/Current And Annealing Can Be Constant Voltage Or Current, Arbitrarily Adjusted.

4. Online Laser Measuring Diameter Gauge, Automatic Width Adjusting.

5. It Realizes Full Automatic Production Of The Whole Device

6. Speed Reach 400m/Min

Methods For Inspecting The Quality Of The Interconnect Pv Ribbon Machine?

1. A Dimension Inspection Is Performed On The Sizes, Lengths, Widths, And Thicknesses.

2. The Appearance Inspection Includes Checking The Surface Quality, The Appearance Of Irregularities Caused By Cutting / Tensile, And Rust On The Surface.

3. Inspection Of Chemical Composition: Including Copper Content, Tin Plating, And Other Elemental Content.

4. An Examination Of The Mechanical Properties Of The Product, Such As Its Tensile Strength, Yield Point, And Elongation, Is Performed.

5. Performing An Electrical Property Inspection, Such As Checking Resistivity Or Conductivity.

6. Watch Closely For Stable And Simultaneous Speed In The Spool

Application:

Industrial Pv Solar Panel,Solar Cells

Specification:

Normal, 6400*1300*3000mm

Finished Product:

Pv Interconnect

0.20± 0.010

0.26 ± 0.010

0.27 ± 0.010

0.29 ± 0.010

0.32 ± 0.010

Output:

170kgs/12 Working Hrs

Speed:

250-450/Min
